Horganyozott fitting Ív 90 BB, KB
Horganyozott fitting Ív 90° BB, KB

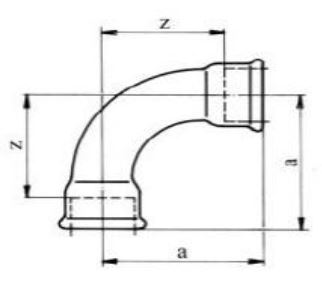

Ív 90° BB
| Méret |
a mm |
z mm |
|---|---|---|
| 3/8" | 48 | 38 |
| 1/2" | 55 | 43 |
| 3/4" | 69 | 55,5 |
| 1" | 85 | 69,5 |
| 5/4" | 105 | 87,5 |
| 6/4" | 116 | 98 |
| 2" | 140 | 118 |
| 2,5" | 176 | 149 |
| 3" | 205 | 175 |
| 4" |

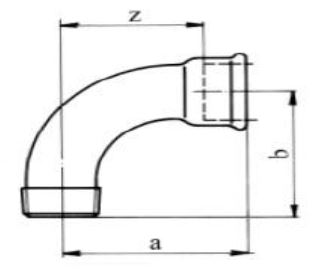

Ív 90° KB
| Méret |
a mm |
b mm |
z mm |
|---|---|---|---|
| 3/8" | 48 | 42 | 38 |
| 1/2" | 5 | 48 | 43 |
| 3/4" | 69 | 60 | 55,5 |
| 1" | 85 | 75 | 68,5 |
| 5/4" | 105 | 95 | 87,5 |
| 6/4" | 116 | 105 | 98 |
| 2" | 140 | 130 | 118 |
| 2,5" | 176 | 165 | 149 |
| 3" | 205 | 190 | 180 |
| 4" | 260 | 245 | 232 |
