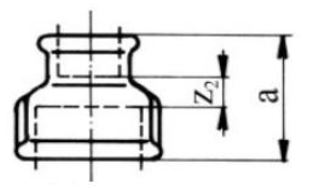

Horganyozott fitting Szűkített karmantyú
Horganyozott fitting Szűkített karmantyú
| Méret |
a mm |
z2 mm |
|---|---|---|
| 1/2"x3/8" | 36 | 13 |
| 3/4"-1/2" | 36 | 12,5 |
| 1"-1/2" | 41 | 15,5 |
| 1"-3/4" | 41 | 14 |
| 1"-3/4" | 47 | 20 |
| 5/4"-3/4" | 47 | 18,5 |
| 5/4"-1" | 47 | 16,5 |
| 6/4"-1/2" | 50 | 22 |
| 6/4"-3/4" | 50 | 20,5 |
| 6/4"-3/4" |
50 50 |
18,5 17 |
| 6/4-5/4" | ||
| 2"-1/2" | 55 | 25 |
| 2"-3/4" | 55 | 23,5 |
| 2"-1" | 55 | 21,5 |
| 2"-5/4" | 55 | 20 |
| 2"-6/4" | 55 | 19 |
| 2,5"-1" | 61 | 25,5 |
| 2,5"-5/4" | 61 | 24 |
| 2,5"-6/4" | 61 | 23 |
| 2,5"-2" | 61 | 21 |
| 3"-1" | 66 | 28,5 |
| 3"-5/4" | 66 | 27 |
| 3"-6/4" | 66 | 26 |
| 3"-2" | 66 | 24 |
| 3"-2,5" | 66 | 22 |
| 4"-1" | 76 | 35,5 |
| 4"-5/4" | 76 | 34 |
| 4"-6/4" | 76 | 33 |
| 4"-2" | 76 | 31 |
| 4"-2,5" | 76 | 29 |
| 4"-3" | 76 | 27 |
